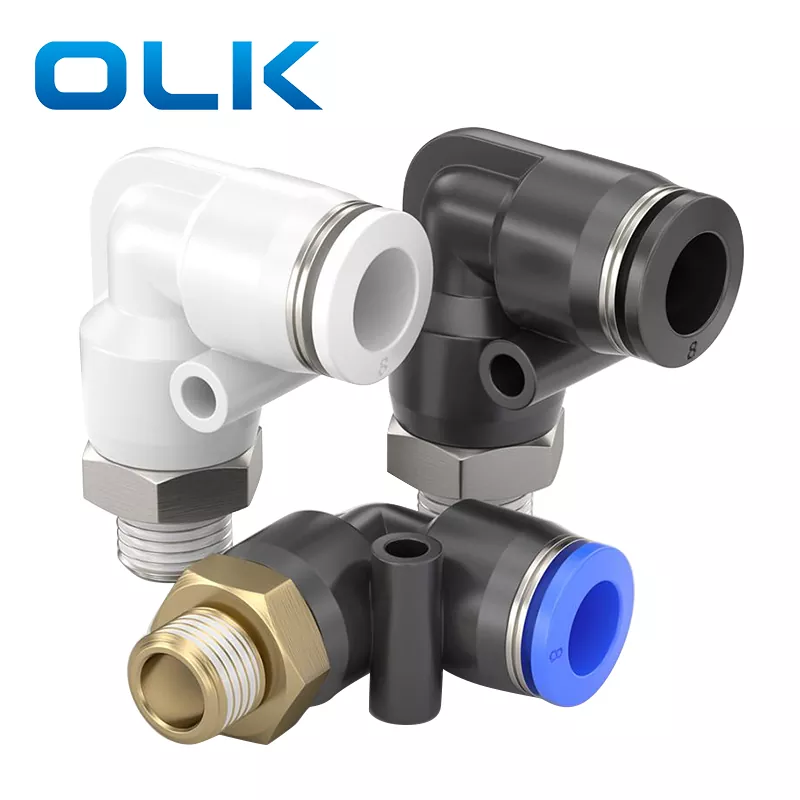

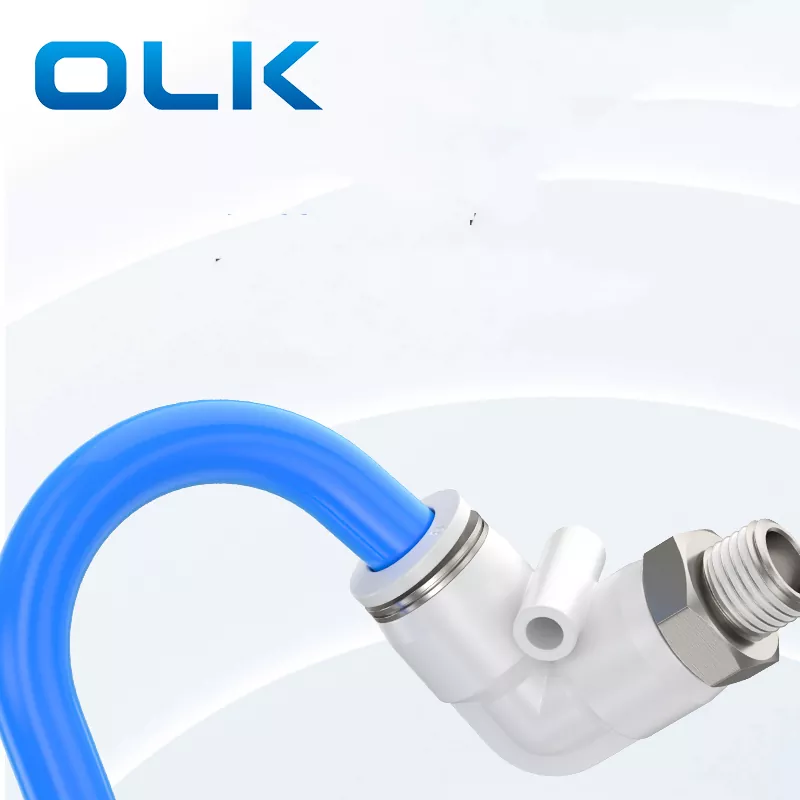

Is é atá i bhfeistiú uillinn fireann fireann i bhfeistiú feadán ná cónascaire uillinn 90 céim atá oiriúnach le húsáid i spásanna teoranta nó i gcás ina bhfuil gá le hatreorú feadánra.
Gnéithe Táirge: Struchtúr dlúth, oiriúnach do spásanna beaga; dearadh stiúrtha dronuillinn, áisiúil do sreangú traceal
|
Cód ordaithe |
|||
|
Plta |
8 |
- |
01 |
|
Múnla |
Méid an fheadáin (méadrach) |
|
Cineál snáithe (55 ° Snáithe feadán díreach) |
|
|
4: 4mm |
|
01: G1/8 |
|
|
6: 6mm |
|
02: G1/4 |
|
|
8: 8mm |
|
03: G3/8 |
|
|
10: 10mm |
|
04: G1/2 |
|
|
12: 12mm |
|
|
|
|
14: 14mm |
|
|
|
|
16: 16mm |
|
|
|
Sreabhán |
Aer/uisce (coinníollach)/folús |
|
Brú oibriúcháin |
0-1.0MPA |
|
Brú i bhfolús |
-100KPA (10 Torr) |
|
Teocht oibriúcháin |
-10-60 ℃ |
|
Ábhar |
Níolón (PA), polúireatán (PU) |
|
Feistiú feadán orlach |
Feistiú feadán méadrach |

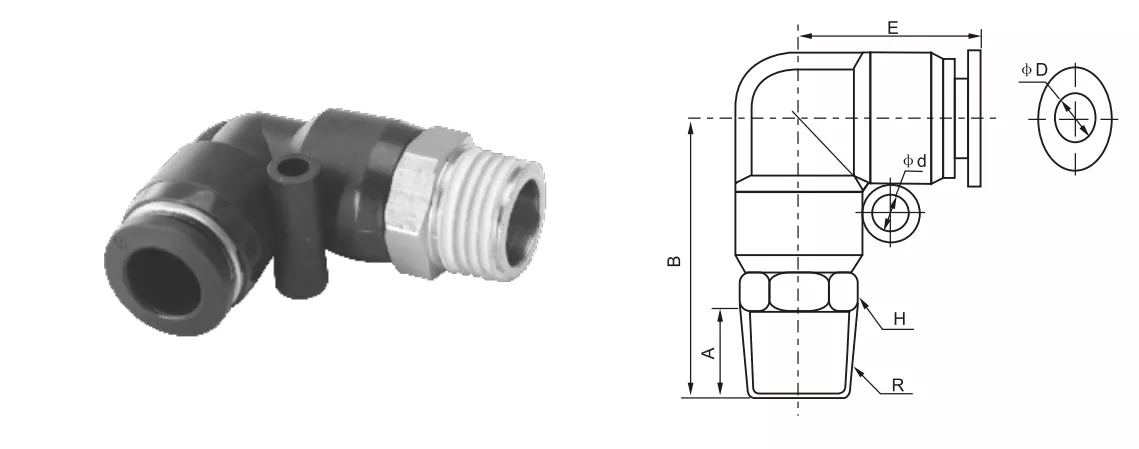

φd |
R |
A |
B |
H |
E |
φd |
|
PL5/32-M5 |
PL4-M5 |
4 |
M5 |
4.5 |
25 |
10 |
19.7 |
/ |
|
PL5/32-01 |
PL4-01 |
4 |
R1/8 |
7 |
26.5 |
10 |
19.7 |
/ |
|
PL5/32-02 |
PL4-02 |
4 |
R1/4 |
9 |
28 |
14 |
19.7 |
/ |
|
PL1/4-M5 |
PL6-M5 |
6 |
M5 |
4.5 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-01 |
PL6-01 |
6 |
R1/8 |
7 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-02 |
PL6-02 |
6 |
R1/4 |
9 |
29.5 |
14 |
20.8 |
3.5 |
|
PL1/4-03 |
PL6-03 |
6 |
R3/8 |
10 |
30.5 |
17 |
20.8 |
3.5 |
|
PL1/4-04 |
PL6-04 |
6 |
R1/2 |
11 |
32 |
21 |
20.8 |
3.5 |
|
PL5/16-01 |
PL8-01 |
8 |
R1/8 |
8 |
31.7 |
14 |
23.5 |
4.5 |
|
PL5/16-02 |
PL8-02 |
8 |
R1/4 |
10 |
33.8 |
14 |
23.5 |
4.5 |
|
PL5/16-03 |
PL8-03 |
8 |
R3/8 |
10 |
33.8 |
17 |
23.5 |
4.5 |
|
PL5/16-04 |
PL8-04 |
8 |
R1/2 |
11 |
35.5 |
21 |
23.5 |
4.5 |
|
PL3/8-01 |
PL10-01 |
10 |
R1/8 |
8 |
35.5 |
17 |
27.4 |
4.5 |
|
PL3/8-02 |
PL10-02 |
10 |
R1/4 |
10 |
37.5 |
17 |
27.4 |
4.5 |
|
PL3/8-03 |
PL10-03 |
10 |
R3/8 |
10 |
38 |
17 |
27.4 |
4.5 |
|
PL3/8-04 |
PL10-04 |
10 |
R1/2 |
11 |
38.6 |
21 |
27.4 |
4.5 |
|
PL1/2-01 |
PL12-01 |
12 |
R1/8 |
8 |
38 |
19 |
30.3 |
5 |
|
PL1/2-02 |
PL12-02 |
12 |
R1/4 |
10 |
39.5 |
19 |
30.3 |
5 |
|
PL1/2-03 |
PL12-03 |
12 |
R3/8 |
10 |
40.5 |
19 |
30.3 |
5 |
|
PL1/2-04 |
PL12-04 |
12 |
R1/2 |
11 |
42 |
21 |
30.3 |
5 |
|
|
PL14-03 |
14 |
R3/8 |
12 |
42.5 |
24 |
30.3 |
4 |
|
|
PL14-04 |
14 |
R1/2 |
15 |
45 |
24 |
30.3 |
4 |
|
|
PL16-03 |
16 |
R3/8 |
15 |
50 |
24 |
34 |
4 |
|
|
PL16-04 |
16 |
R1/2 |
15 |
50.5 |
27 |
34 |
4 |
|
Ainm/Cineál |
Cur síos ar struchtúr comhéadan |
|
Uillinn ríomhaire |
Tá an comhpháirt píopa lúbtha ag uillinn 90 °, agus tá an taobh eile snáithithe go hinmheánach |
|
PL Elbow |
Cuirtear foirceann amháin isteach agus tá snáithe seachtrach de 90 ° ag an taobh eile |
|
PV Elbow |
Is cineál isteach feadán iad an dá cheann, le lúb 90 ° |
Cén t -ábhar a bhfuil an cónascaire PL déanta?
copar
Cad iad ainmneacha na gcodanna feistithe feadán nasctha?

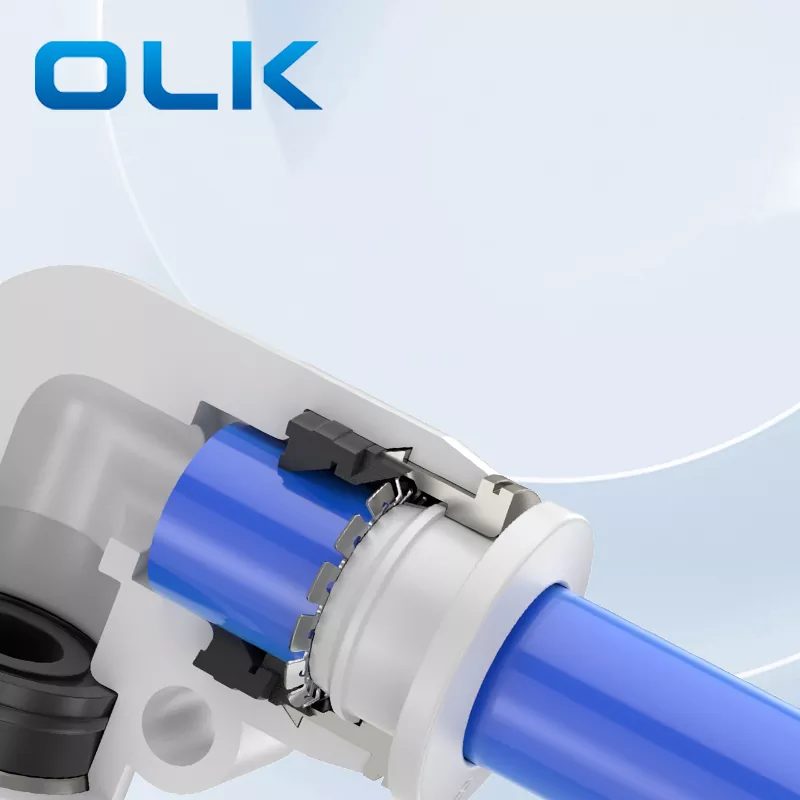

Struchtúr Inmheánach Feistiú Feadán Feadán Tapa: Scaoileadh, Socraigh Cárta Cóimhiotail Sinc, Spring Grox Grox, Sleeve Lock, Fáinne Séalaithe Clasp, Plaistigh Ard -Neart
Cén cineál snáithe PL é?
Is snáithe méadrach é, léiríonn M.
Cad a chiallaíonn ‘Elbow’ i bhfeistiú neomatach?
Feistiú Elbow: Feistiú aeir a ligeann don fheadán treo a athrú, go hiondúil ag uillinn 90 céim.
