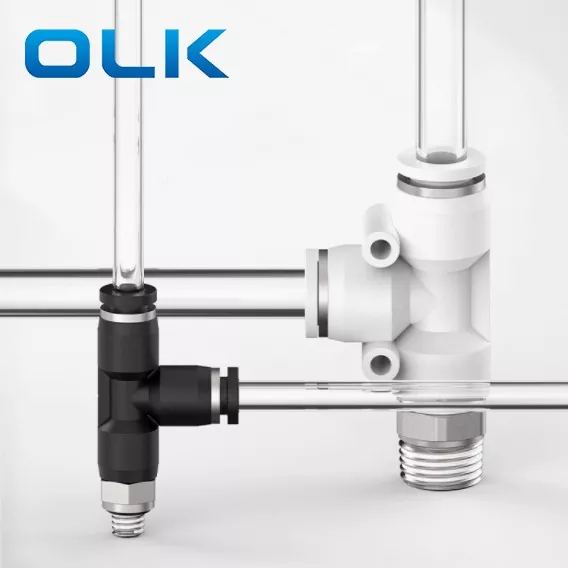

Is feistiú brú isteach trí-bhealach Y-Tree é an brú a rithtear i bhfeistiú feadán, atá deartha chun foinse aeir amháin a roinnt ina dhá aschur. Tá sé oiriúnach do chórais a éilíonn nasc neomatach aon-in-out.

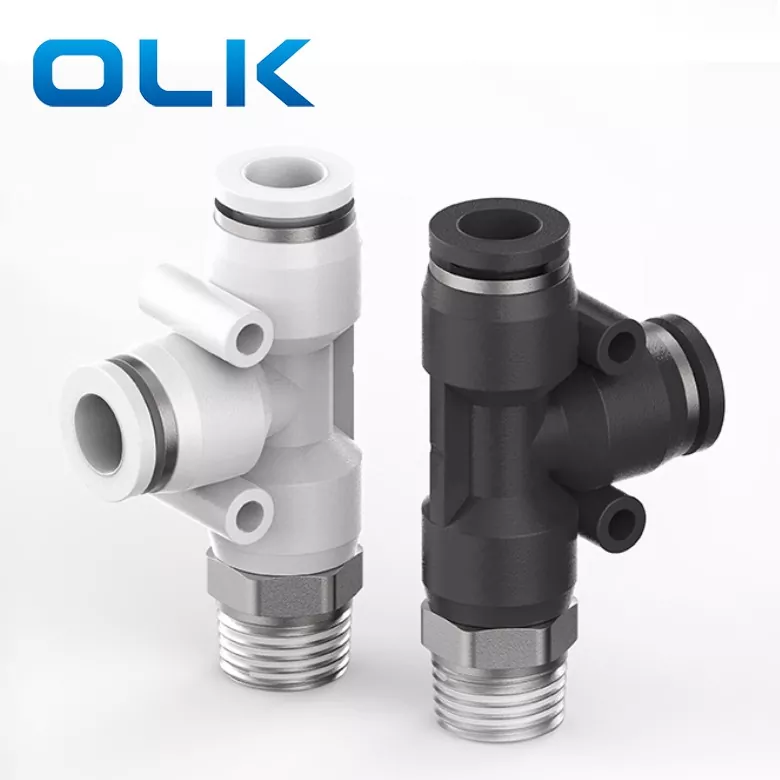

PD Feistiú Príomhghnéithe: Dearadh Y-chruth do dháileadh aeir éifeachtach; foircinn bhrú-le-nasc le haghaidh suiteáil éasca; ródú solúbtha le haghaidh feadánra il-threo
|
Cód ordaithe |
|||
|
PD |
8 |
- |
01 |
|
Múnla |
Méid an fheadáin (méadrach) |
|
Cineál snáithe (55 ° Snáithe feadán díreach) |
|
Feistiú Sraith PD |
4: 4mm |
|
01: G1/8 |
|
|
6: 6mm |
|
02: G1/4 |
|
|
8: 8mm |
|
03: G3/8 |
|
|
10: 10mm |
|
04: G1/2 |
|
|
12: 12mm |
|
|
|
|
14: 14mm |
|
|
|
|
16: 16mm |
|
|
|
Sreabhán |
Aer/uisce (coinníollach)/folús |
|
Brú oibriúcháin |
0-1.0MPA |
|
Brú i bhfolús |
-100KPA (10 Torr) |
|
Teocht oibriúcháin |
-10-60 ℃ |
|
Ábhar |
Níolón (PA), polúireatán (PU) |
|

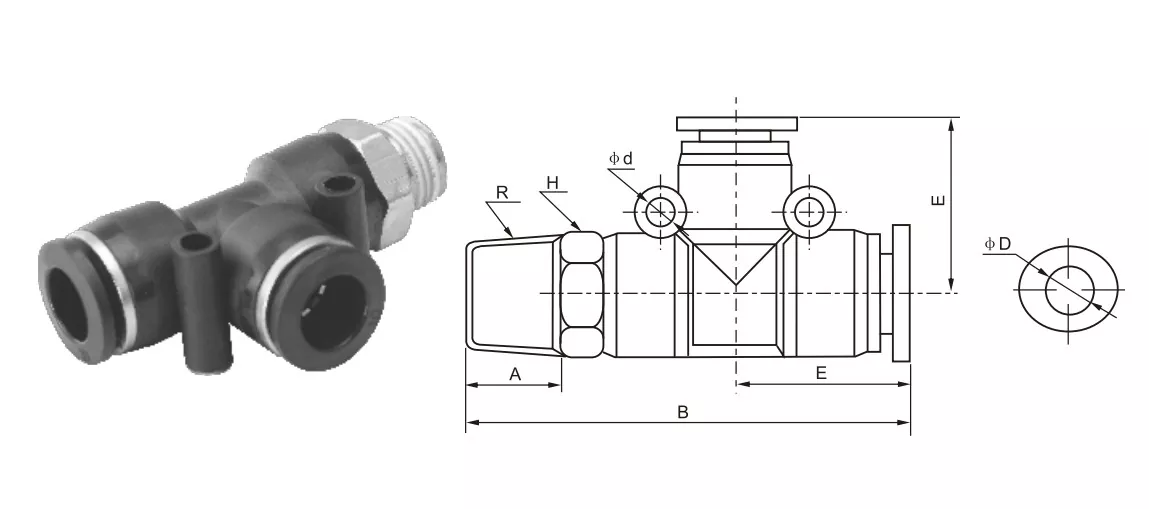

Feistiú feadán orlach |
Feistiú feadán méadrach |
φd |
R |
A |
B |
E |
H |
φd |
|
PD5/32-M5 |
PD4-M5 |
4 |
M5 |
4.5 |
44 |
18.4 |
10 |
/ |
|
PD5/32-01 |
PD4-01 |
4 |
R1/8 |
7 |
44 |
18.4 |
10 |
/ |
|
PD5/32-02 |
PD4-02 |
4 |
R1/4 |
9 |
47.5 |
18.4 |
14 |
/ |
|
PD1/4-M5 |
PD6-M5 |
6 |
M5 |
4.5 |
47 |
20.8 |
12 |
3.5 |
|
PD1/4-01 |
PD6-01 |
6 |
R1/8 |
7 |
48.5 |
20.8 |
12 |
3.5 |
|
PD1/4-02 |
PD6-02 |
6 |
R1/4 |
9 |
51 |
20.8 |
14 |
3.5 |
|
PD1/4-03 |
PD6-03 |
6 |
R3/8 |
10 |
51.5 |
20.8 |
17 |
3.5 |
|
PD1/4-04 |
PD6-04 |
6 |
R1/2 |
11 |
54 |
20.8 |
21 |
3.5 |
|
PD5/16-01 |
PD8-01 |
8 |
R1/8 |
8 |
54 |
22.8 |
14 |
4.5 |
|
PD5/16-02 |
PD8-02 |
8 |
R1/4 |
10 |
55.5 |
22.8 |
14 |
4.5 |
|
PD5/16-03 |
PD8-03 |
8 |
R3/8 |
10 |
57 |
22.8 |
17 |
4.5 |
|
PD5/16-04 |
PD8-04 |
8 |
R1/2 |
11 |
58 |
22.8 |
21 |
4.5 |
|
PD3/8-01 |
PD10-01 |
10 |
R1/8 |
8 |
64.2 |
38.3 |
17 |
4.5 |
|
PD3/8-02 |
PD10-02 |
10 |
R1/4 |
10 |
67 |
38.3 |
17 |
4.5 |
|
PD3/8-03 |
PD10-03 |
10 |
R3/8 |
10 |
66 |
28.3 |
17 |
4.5 |
|
PD3/8-04 |
PD10-04 |
10 |
R1/2 |
11 |
67 |
28.3 |
21 |
4.5 |
|
PD1/2-01 |
PD12-01 |
12 |
R1/8 |
8 |
67 |
29.6 |
19 |
5 |
|
PD1/2-02 |
PD12-02 |
12 |
R1/4 |
10 |
68.8 |
29.6 |
19 |
5 |
|
PD1/2-03 |
PD12-03 |
12 |
R3/8 |
10 |
68.8 |
29.6 |
19 |
5 |
|
PD1/2-04 |
PD12-04 |
12 |
R1/2 |
11 |
70 |
29.6 |
21 |
5 |
|
|
PD14-03 |
16 |
R3/8 |
12 |
|
35 |
24 |
4 |
|
|
PD14-04 |
16 |
R1/2 |
15 |
85 |
35 |
24 |
4 |
|
Ainm/Cineál |
Cur síos ar struchtúr comhéadan |
|
Rith Tee (PD) |
Tá an príomhshreabhadh aeir díreach, agus tá na brainsí á stiúradh go hingearach |
|
Tee Brainse (PB) |
Tá dhá chomhéadan ceangailte ag dronuillinneacha, ceann ar an mbrainse de "T" |
|
Tee cothrom |
Trí chalafort leis an méid céanna |
Cad is brí le feistiú cónascaire?
Ciallaíonn TEE "cónascaire T-chruthach (TEE) le trí chomhéadan;
Tagraíonn 'Rith' don phríomhbhealach (is líne dhíreach é treo an phríomhshreafa aeir);
Mar sin ciallaíonn 'Rith Tee' go bhfuil an príomhbhealach díreach tríd, agus go bhfuil brainse á stiúradh go hingearach i lár.
