Is é atá i mbrú an bhrainse PB ná feistiú brú-isteach an aontas díreach a úsáidtear chun dhá fheadán a nascadh i gcóras neomatach, ag cinntiú go bhfuil aer-sreabhadh réidh agus séalaithe iontaofa ann.
PB Feistiú Príomhghnéithe: Brú chun nascadh le haghaidh suiteáil tapa agus éasca; nasc feadán dé-deireadh díreach
|
Cód ordaithe |
|||
|
Pb |
8 |
- |
01 |
|
Múnla |
Méid an fheadáin (méadrach) |
|
Cineál snáithe (55 ° Snáithe feadán díreach) |
|
Feistiú Sraith PB |
4: 4mm |
|
01: G1/8 |
|
|
6: 6mm |
|
02: G1/4 |
|
|
8: 8mm |
|
03: G3/8 |
|
|
10: 10mm |
|
04: G1/2 |
|
|
12: 12mm |
|
|
|
|
14: 14mm |
|
|
|
|
16: 16mm |
|
|
|
Sreabhán |
Aer/uisce (coinníollach)/folús |
|
Brú oibriúcháin |
0-1.0MPA |
|
Brú i bhfolús |
-100KPA (10 Torr) |
|
Teocht oibriúcháin |
-10-60 ℃ |
|
Ábhar |
Níolón (PA), polúireatán (PU) |
|
Feistiú feadán orlach |

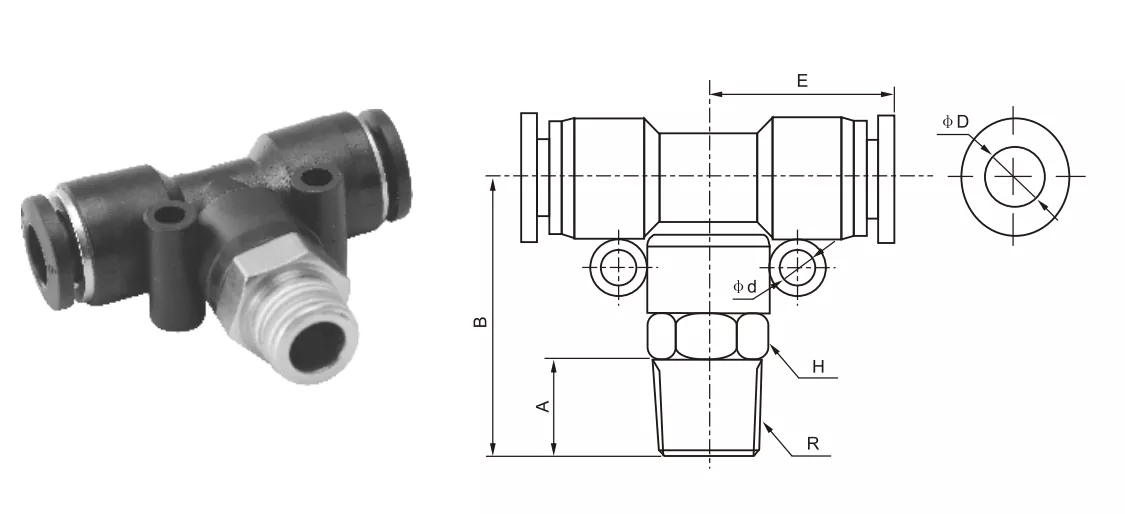

Feistiú Tube Metri |
φd |
R |
A |
B |
E |
H2 |
φd |
|
PB5/32-M5 |
Pb4-M5 |
4 |
M5 |
4.5 |
25.4 |
18.6 |
10 |
/ |
|
PB5/32-01 |
PB4-01 |
4 |
R1/8 |
7 |
25.4 |
18.6 |
10 |
/ |
|
PB5/32-02 |
PB4-02 |
4 |
R1/4 |
9 |
27.8 |
18.6 |
14 |
/ |
|
PB1/4-M5 |
Pb6-M5 |
6 |
M5 |
4.5 |
26.8 |
20.8 |
12 |
3.5 |
|
PB1/4-01 |
PB6-01 |
6 |
R1/8 |
6.5 |
37.6 |
20.8 |
12 |
3.5 |
|
PB1/4-02 |
PB6-02 |
6 |
R1/4 |
9 |
30 |
20.8 |
14 |
3.5 |
|
PB1/4-03 |
PB6-03 |
6 |
R3/8 |
10 |
30.6 |
20.8 |
17 |
3.5 |
|
PB1/4-04 |
PB6-04 |
6 |
R1/2 |
10 |
32.5 |
20.8 |
21 |
3.5 |
|
PB5/16-01 |
PB8-01 |
8 |
R1/8 |
8 |
31.5 |
22.9 |
14 |
4.5 |
|
PB5/16-02 |
PB8-02 |
8 |
R1/4 |
10 |
33 |
22.9 |
14 |
4.5 |
|
PB5/16-03 |
PB8-03 |
8 |
R3/8 |
10 |
33.6 |
22.9 |
17 |
4.5 |
|
PB5/16-04 |
PB8-04 |
8 |
R1/2 |
11 |
35 |
22.9 |
21 |
4.5 |
|
PB3/8-01 |
PB10-01 |
10 |
R1/8 |
8 |
37 |
27.8 |
17 |
4 |
|
PB3/8-02 |
PB10-02 |
10 |
R1/4 |
10 |
38 |
27.8 |
17 |
4 |
|
PB3/8-03 |
PB10-03 |
10 |
R3/8 |
10 |
38 |
27.8 |
17 |
4.5 |
|
PB3/8-04 |
PB10-04 |
10 |
R1/2 |
11 |
39 |
27.8 |
21 |
4.5 |
|
PB1/2-01 |
PB12-01 |
12 |
R1/8 |
8 |
37.5 |
29.5 |
19 |
5 |
|
PB1/2-02 |
PB12-02 |
12 |
R1/4 |
10 |
40 |
29.5 |
19 |
5 |
|
PB1/2-03 |
PB12-03 |
12 |
R3/8 |
10 |
40 |
29.5 |
19 |
5 |
|
PB1/2-04 |
PB12-04 |
12 |
R1/2 |
11 |
41 |
29.5 |
21 |
5 |
|
|
PB14-03 |
16 |
R3/8 |
11 |
46.3 |
34.5 |
24 |
4 |
|
|
PB14-04 |
16 |
R1/2 |
12 |
47.3 |
34.5 |
27 |
4 |
|
Ainm/Cineál |
Cur síos ar struchtúr comhéadan |
|
Rith Tee (PD) |
Tá an príomhshreabhadh aeir díreach, agus tá na brainsí á stiúradh go hingearach |
|
Tee Brainse (PB) |
Tá dhá chomhéadan ceangailte ag dronuillinneacha, ceann ar an mbrainse de "T" |
|
Tee cothrom |
Trí chalafort leis an méid céanna |
