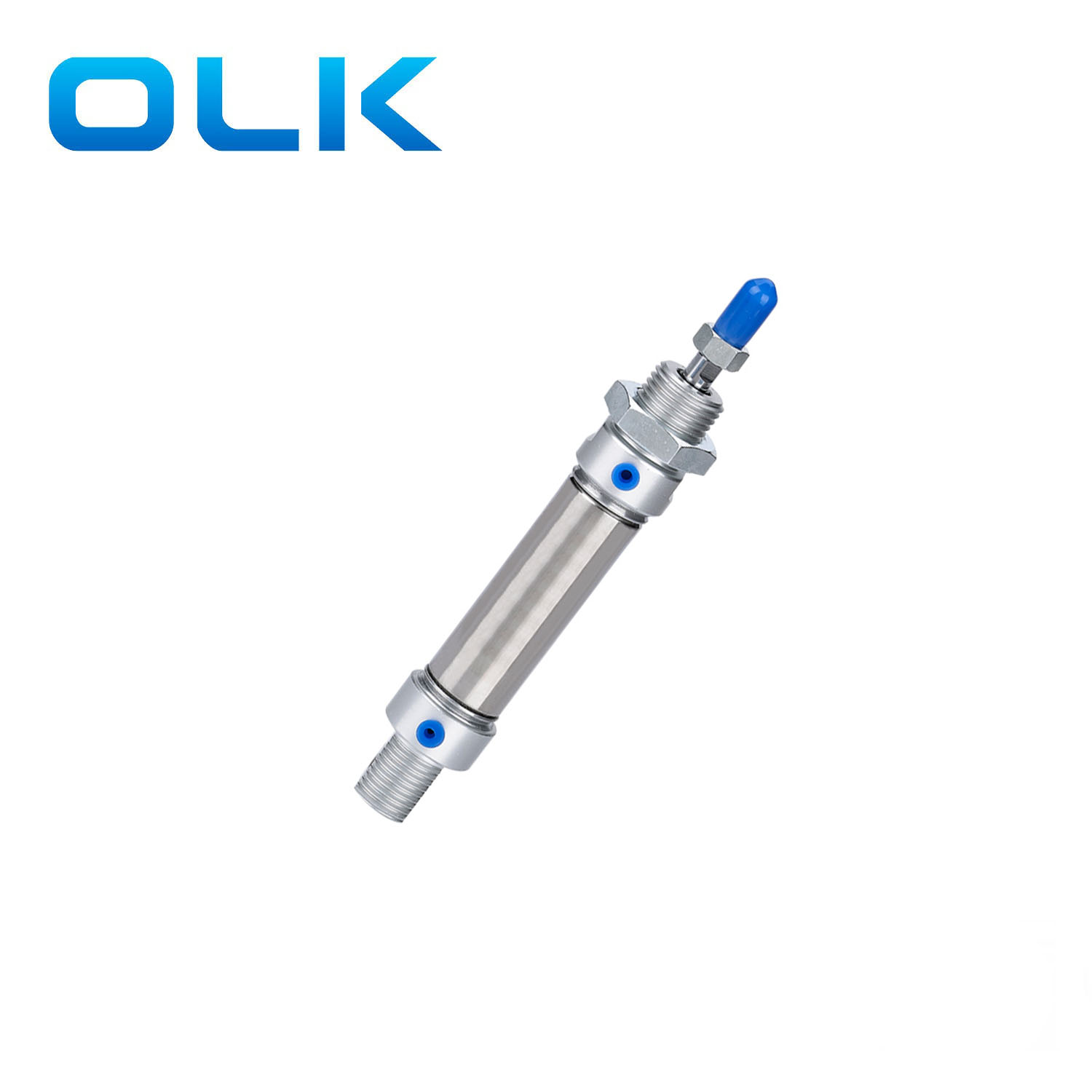

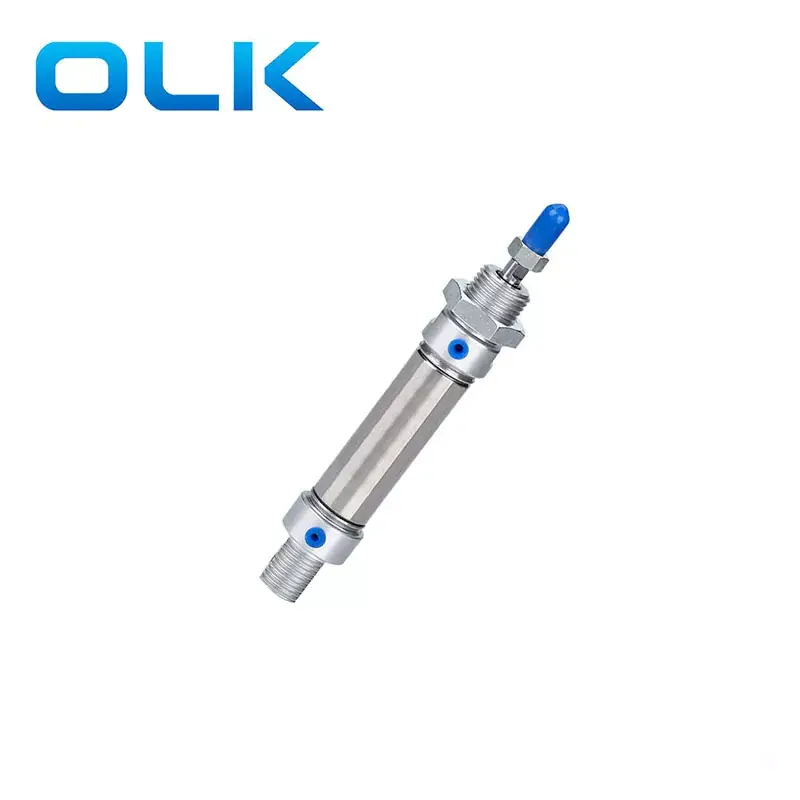

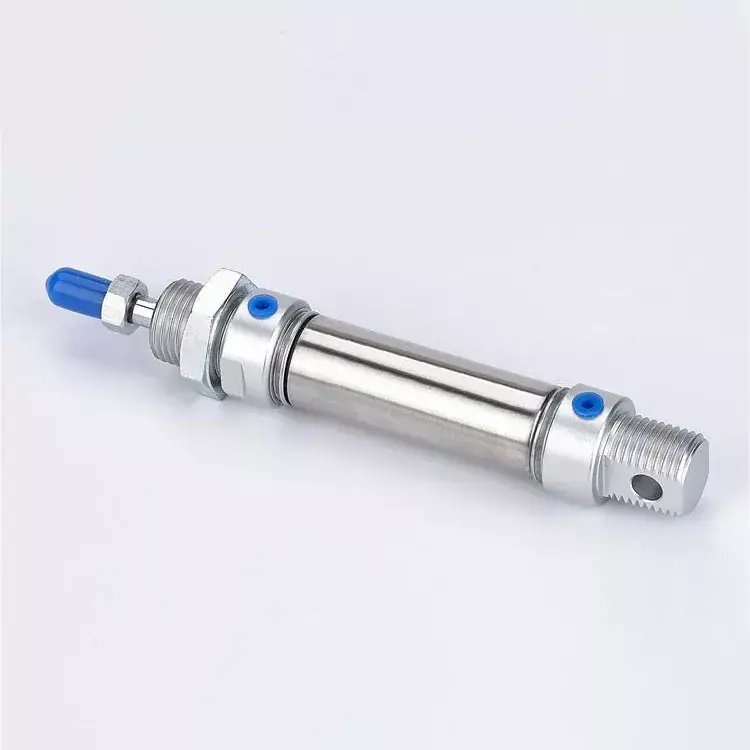

The Ouleikai (OLK) MA stainless steel mini cylinder features an ultra-compact and lightweight design, making it suitable for applications with extremely limited space. It offers quick response times, allowing for high-frequency motion control. Despite its small size, the MA mini cylinder still provides high positioning accuracy, making it suitable for scenarios with stringent positioning requirements.
It is used for joint control and motion drive in micro-robots, enabling precise robot operations; motion control in small medical equipment, such as controlling the moving parts of surgical instruments; and functions such as sample handling and positioning in laboratory equipment, improving experiment efficiency and accuracy.
The MA series Stainless Steel mini cylinder OLK brand comes with built-in magnets and is well-established in the market.
OULEIKAI FACTORY quick response times MA Series mini cylinder Product characteristics
MA Stainless steel mini cylinder symbol:
| MA | 20 | X | 50 | _ | S | _ | CM | ||
| Model: | Bore size | Stoke | Magent | Back cover | Mounting | Thread type | |||
| MA:mini cylinder(Double acting) | S:with magnet | CA:Pivot type | Blank: | Blank:PT | |||||
| MAC:mini cylinder(Double acting with cushion) | CM:Round -end type | FA | T:NPT | ||||||
| MSA:mini cylinder (Single acing-push) | U:Flat-end type | SDB | G:G | ||||||
| MTA:mini cylinder(Single acting-pull) | LB | ||||||||
| MAJ | 20 | X | 50 | _ | 20 | S | _ | ||
| Model: | Bore size | Stoke | Adjustable stroke | Magent | Mounting | Thread type | |||
| MAD:mini cylinder (Double rod) | 10:10mm | S:with magnet | Blank: | Blank:PT | |||||
| MACD:mini cylinder (Double rod with cushion) | 20:20mm | FA | T:NPT | ||||||
| MAJ:mini cylinder (Adjustable stroke) | 30:30mm | LB | G:G | ||||||
| MACJ:mini cylinder(Adjustable stroke with cushion) | 40:40mm | ||||||||
| 50:50mm | |||||||||
| 75:75mm | |||||||||
| 100:100mm | |||||||||
| MA | 20 | X | 50 | _ | S | _ | U | ||
| Model: | Bore size | Stoke | Magent | Front Cover | Thread type | ||||
| MAR:mini cylinder(Double acting with cushion) | S:with magnet | F:Front-fixed type | Blank:PT | ||||||
| U:Top-fixed type | T:NPT | ||||||||
| G:G | |||||||||
1. Complies with our company's standard.
2. The piston seal adopts a special double-sided sealing structure, compact in size, with oil storage function.
3. The front and rear covers are equipped with fixed impact pads to reduce the impact of cylinder reversal.

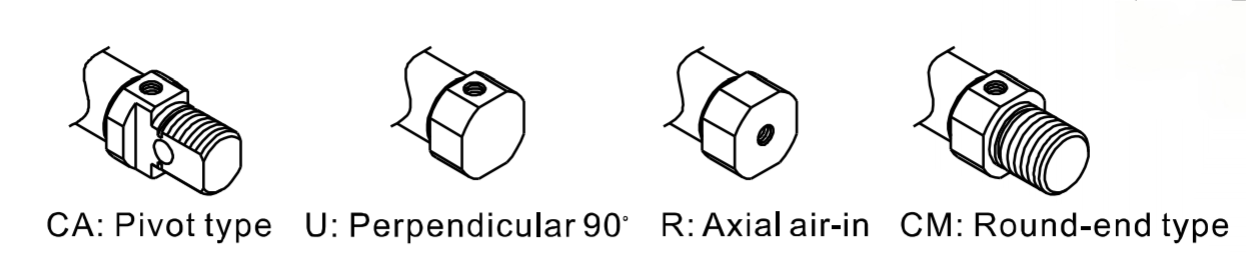

4. Various forms of rear covers make cylinder installation more convenient.

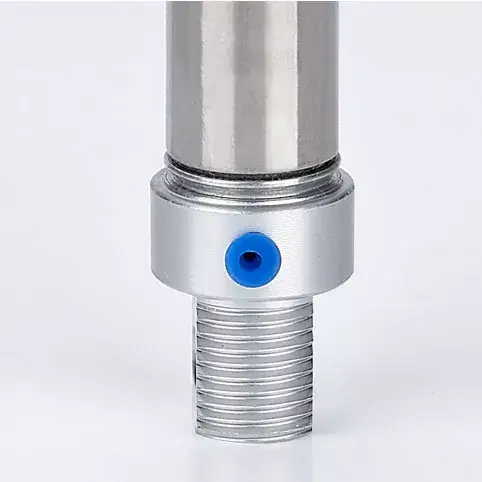

5. The front and rear covers are riveted to the stainless steel cylinder body with a rolling package structure, ensuring reliable connection. The cylinder body is made of high-precision stainless steel tubing, providing high strength and corrosion resistance.

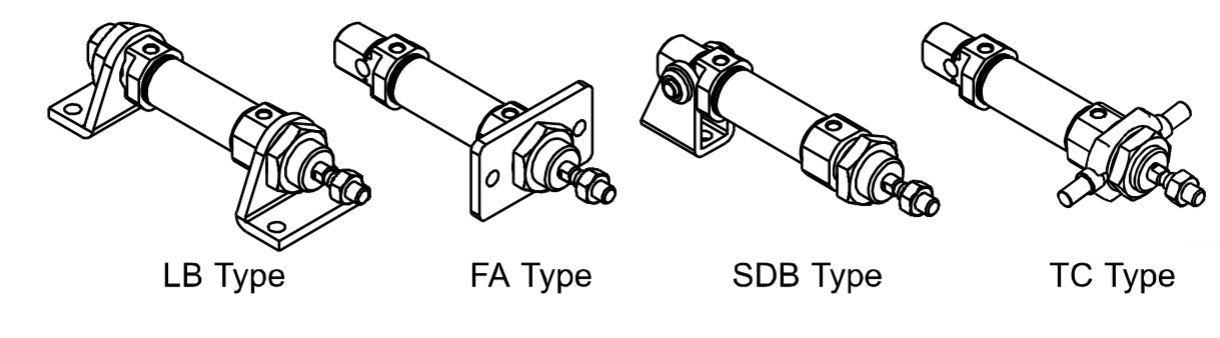

6. Various specifications of cylinders and cylinder mounting accessories are available for customer selection.
7. All cylinders in this series come with magnets.
|
Bore Size(mm) |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
|||
|
Acting Mode |
Double Acting |
|||||||||
|
Single Acting |
||||||||||
|
Working medium |
Cleaned Air |
|||||||||
|
Working Pressure |
Double Acting:0.1-1.0 MPa (15-145Psi) |
|||||||||
|
Single Acting:0.2-1.0 MPa (28-145Psi) |
||||||||||
|
Proof Pressure |
1.5 Mpa (215Psi) |
|||||||||
|
Working Temperature Range |
‘-20-70℃ |
|||||||||
|
Working Speed Range |
Double Acting :30-800mm/s Single Acting:50-800mm/s |
|||||||||
|
Buffering Mode |
MAC.MACD,MACJ series :Adjustable cushion / Other series :crash cushion |
|||||||||
|
Port size |
M5X0.8 |
PT1/8 |
PT1/4 |
|||||||
MA series stainless steel mini cylinder Application:
MA stainless steel cylinders is small ,light,and resistant to rust and corrosion.These cylinders are ideal for clean environment and wet conditions.
MA series cylinders are widely used in food and beverage,medical,chemical,and marine industries.
